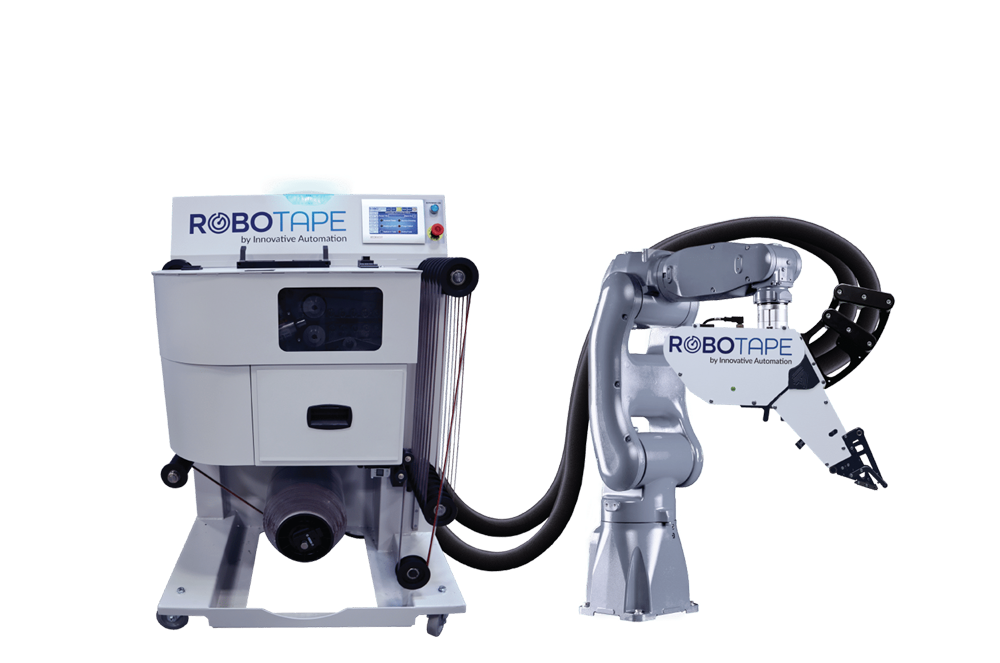

RoboTape
Where Precision Meets Performance

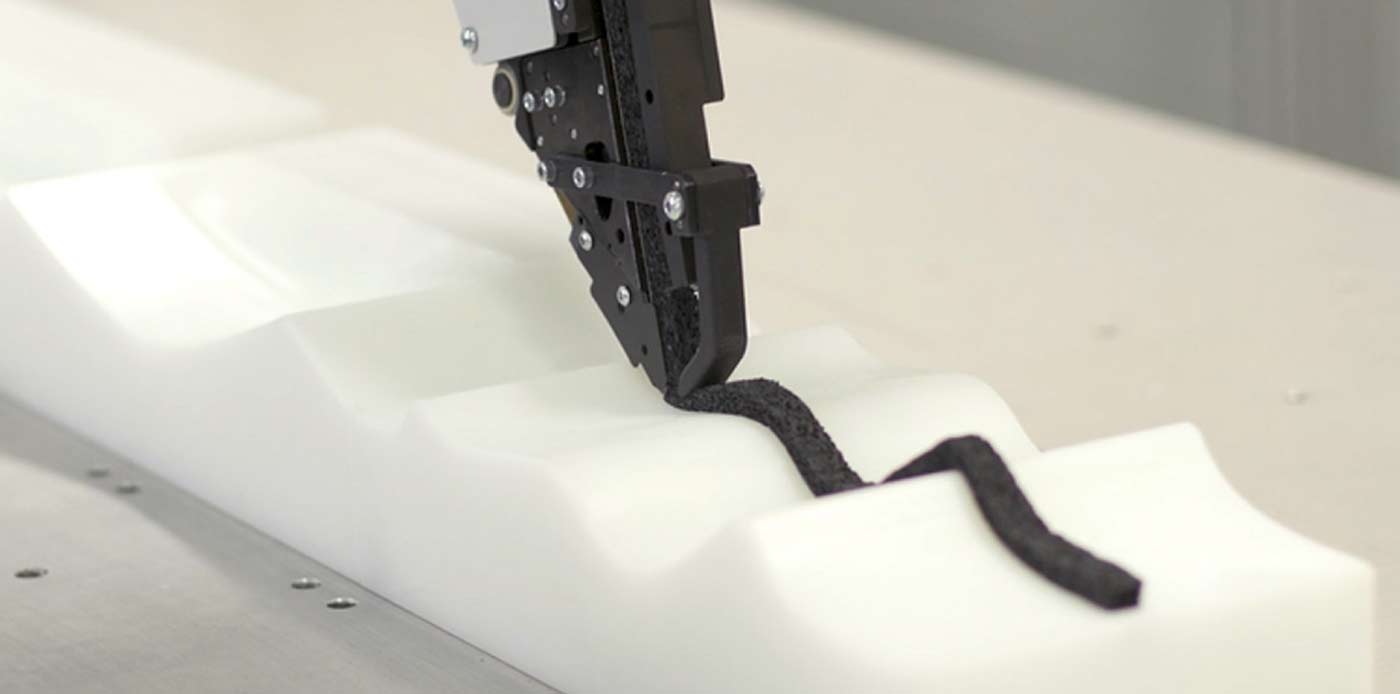

Designed to handle demanding tape applications, Robotape helps manufacturers tape better, faster and smarter.

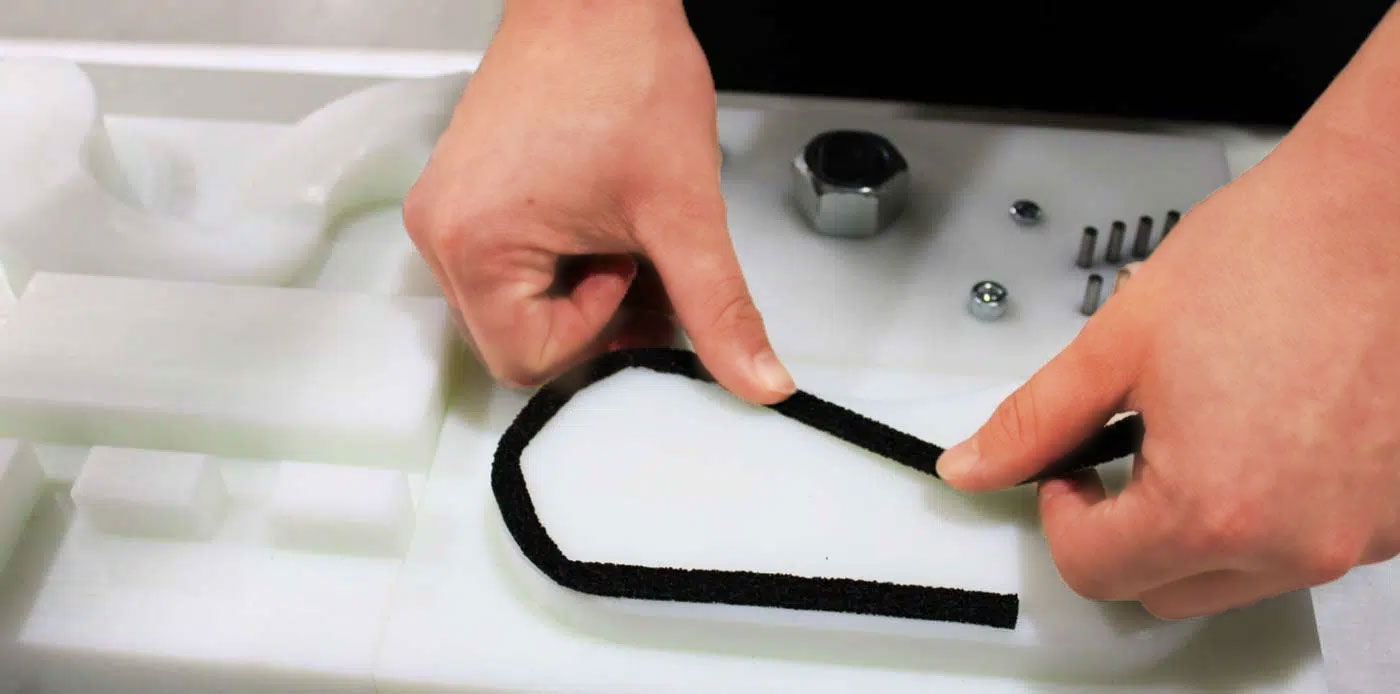

Move Beyond Manual

Manual taping is time-consuming, resource-intensive, inefficient and error-prone. Robotape offers you and your team a better way to tape.

Integrated Cutting

SPLICE DETECTION & Removal

OPTIONAL SECONDARY LINER

ADJUSTABLE WET OUT PRESSURE

CONTACT-FREE PROCESSING

EASILY ADAPTED TO EXISTING OR NEW PRODUCTION LINES

Realize Efficiency and Productivity Gains

Fast, efficient automated taping will help you meet and exceed your production targets while allowing you to redirect teams toward higher-value work that directly benefits your top and bottom line.

ZERO DOWNTIME SPOOL CHANGE

BULK SPOOLS

TURNKEY SYSTEM WITH INTEGRATION

SINGLE AND DOUBLE SIDED TAPES

FAST LINER DISPOSAL

LIGHTWEIGHT APPLICATOR

A Smart Solution for Smart Manufacturers

Address production challenges with precision and repeatability. Our experts will integrate RoboTape into your custom work cell or existing stations while maintaining maximum flexibility.

FLEXIBLE FEED SYSTEM

ADAPTABLE TAPE SIZES

TAPE SPEED CONTROL

LOW SPOOL MONITORING

STURDY & ROBUST

INTEGRATES WITH MOST ROBOTS AND COBOTS

Move Beyond Manual

Manual taping is time-consuming, resource-intensive, inefficient and error-prone. Robotape offers you and your team a better way to tape.

Realize Efficiency and Productivity Gains

Fast, efficient automated taping will help you meet and exceed your production targets while allowing you to redirect teams toward higher-value work that directly benefits your top and bottom line.

A Smart Solution for Smart Manufacturers

Address production challenges with precision and repeatability. Our experts will integrate RoboTape into your custom work cell or existing stations while maintaining maximum flexibility.

Integrated Cutting

ADJUSTABLE WET OUT PRESSURE

SPLICE DETECTION & Removal

CONTACT-FREE PROCESSING

OPTIONAL SECONDARY LINER

EASILY ADAPTED TO EXISTING OR NEW PRODUCTION LINES

ZERO DOWNTIME SPOOL CHANGE

SINGLE AND DOUBLE SIDED TAPES

BULK SPOOLS

FAST LINER DISPOSAL

TURNKEY SYSTEM WITH INTEGRATION

LIGHTWEIGHT APPLICATOR

FLEXIBLE FEED SYSTEM

LOW SPOOL MONITORING

ADAPTABLE TAPE SIZES

STURDY & ROBUST

TAPE SPEED CONTROL

INTEGRATES WITH MOST ROBOTS AND COBOTS

7” Touch Screen HMI

Up to 425mm Diameter Spools

16mm Max Tape Width and Height

100-127v Power Input

5.5 bar 312LPM Compressed Air Supply

Works on a 10 Kg + Payload Robot or Fixed Mounted

Integrated Pressurized Wet-out

Up to 6 Meter Feed Distance

9 Meter Tape Accumulation

Splice Detection Sensor

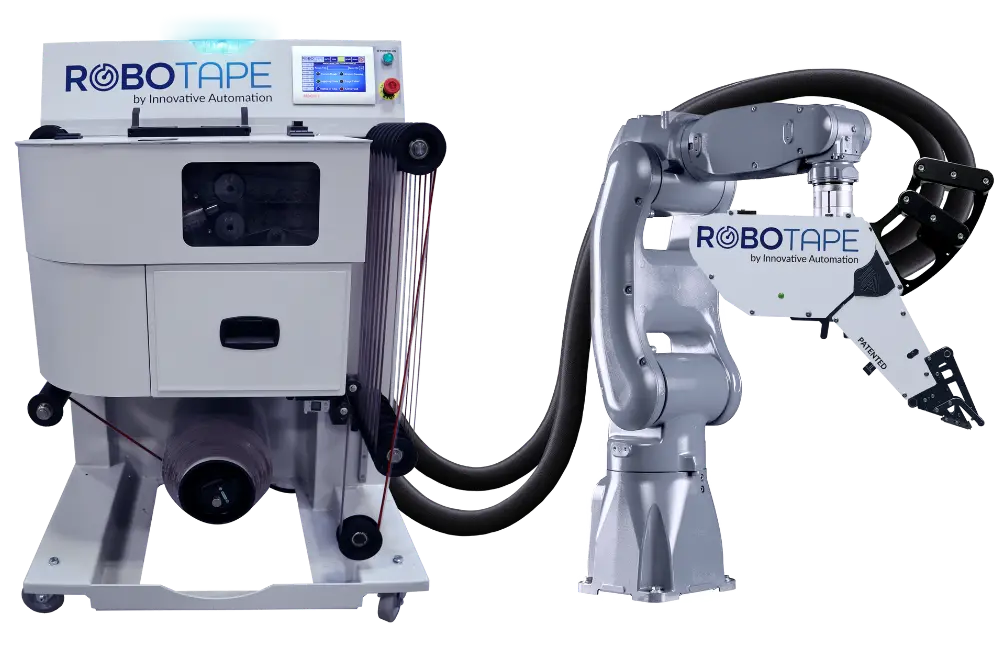

RoboTape Payout

RoboTape Payout

Size

RoboTape Payout

890w X 575d X 1285h mm (35w x 22.5d x 50.4h”)

RoboTape Payout

Weight

RoboTape Payout

68kg (150lbs)

RoboTape Payout

Tape Dimension Constraints

RoboTape Payout

3mm - 16mm wide, up to 16mm thick (0.118” - 0.63” wide, up to 0.63” thick)*

RoboTape Payout

Spool Size

RoboTape Payout

Up to 425mm diameter x 425mm wide (16.75” x 16.75”)

RoboTape Payout

Feed System

RoboTape Payout

Adjustable length up to 7 meters

RoboTape Payout

Minimum Air Supply

RoboTape Payout

5.5 bar, 315LPM (80PSI, 11CFM)**

RoboTape Payout

Slave Communication Protocol

RoboTape Payout

EtherCAT, Ethernet-IP, PROFINET

RoboTape Applicator

RoboTape Applicator

Size

RoboTape Applicator

425w X 225d X 350h mm (16.7w x 8.9d x 13.8h”)*

RoboTape Applicator

Weight

RoboTape Applicator

7.2kg (15.8lbs)

RoboTape Applicator

Tape Dimension Constraints

RoboTape Applicator

Up to 16mm square (0.63” square)**

RoboTape Applicator

Maximum Feed Rate

RoboTape Applicator

300mm/s (1 fps)**

RoboTape Applicator

Application Precision

RoboTape Applicator

+/-1mm (0.04”) all around**

RoboTape Applicator

Robot Requirements

RoboTape Applicator

10kg minimum payload, must have TCP speed output**

Our Quality Guarantee

*Full warranty on parts and manufacturing defects

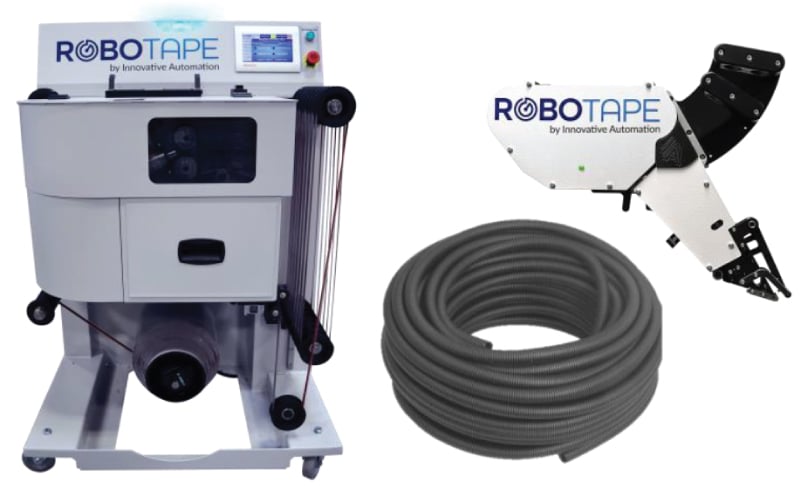

Included with every RoboTape System:

R

ROBOTAPE HEAD

R

ROBOTAPE PAYOUT

R

FLEXIBLE FEED SYSTEM

R

FEASIBILITY ASSESSMENT

R

VIRTUAL SUPPORT

Turn-key systems and integration available!

Custom work cells are our specialty! Contact us today for a consultation.

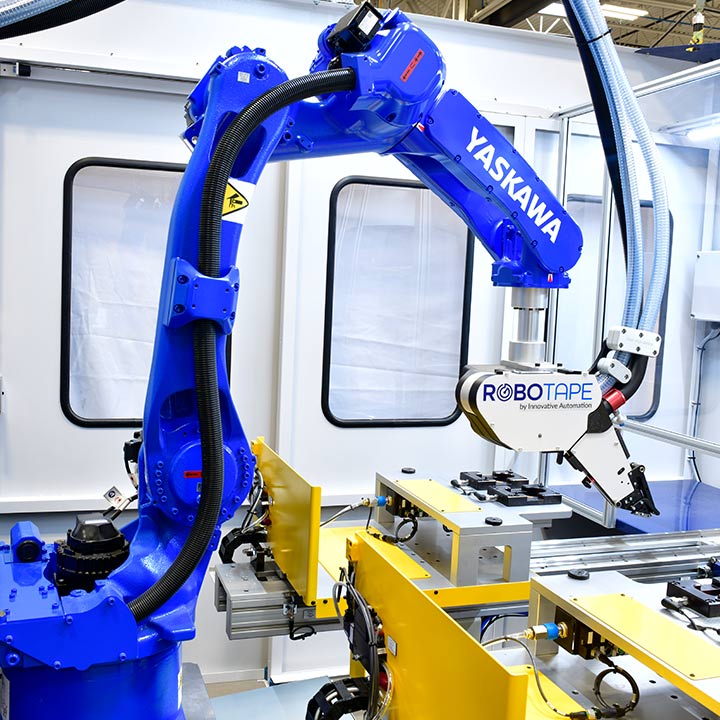

Tape smarter with a turn-key work cell for ultimate efficiency improvements within your factory. This cell works will all major brands of industrial robots and is fully guarded to process parts faster. The standard cell is available with shorter lead times then traditional custom work cells.

STANDARD A/B WORK CELL

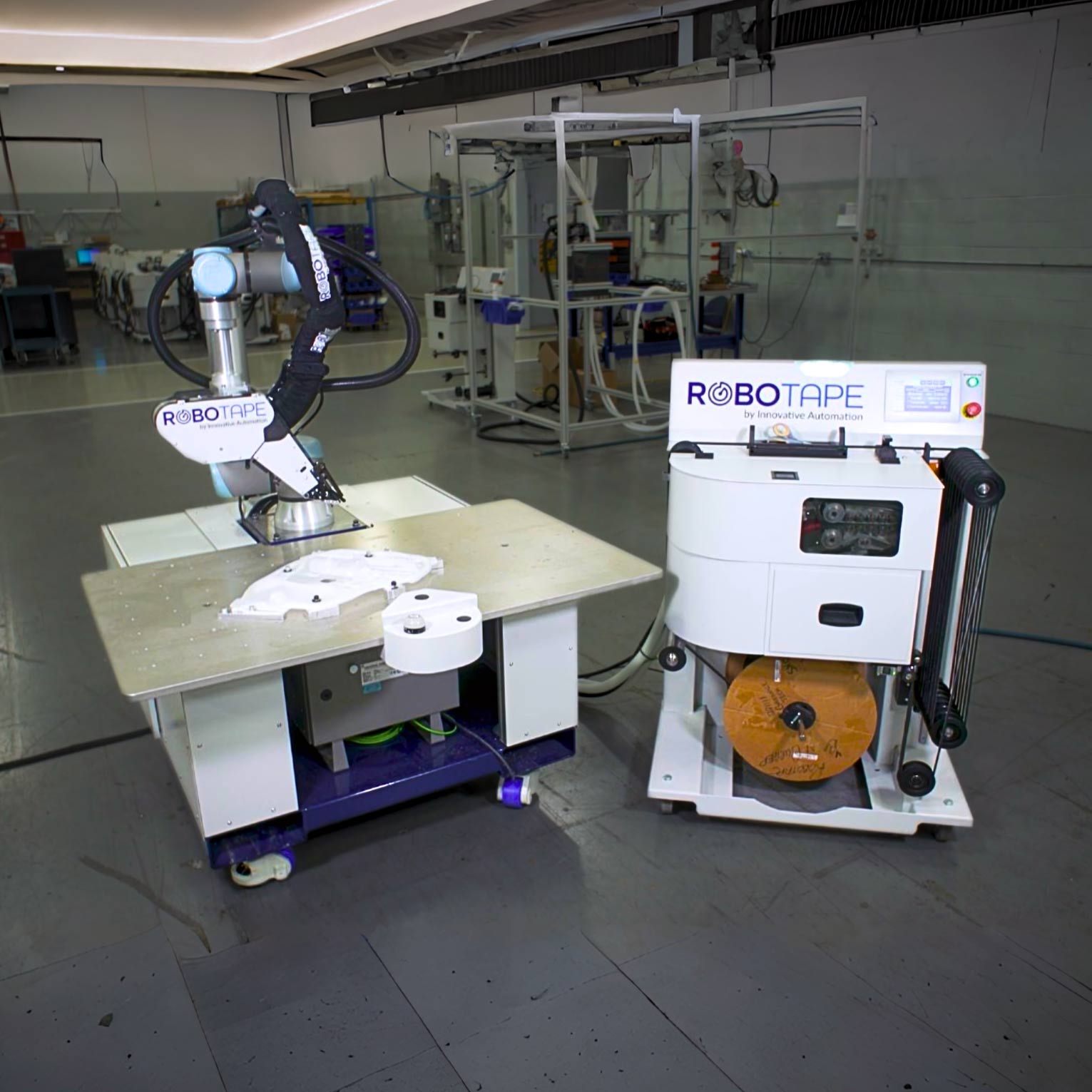

Tape better using the new RoboTape Lite Cell. This small and mobile work cell can be added to production lines for instant throughput gains. Offered at a competitive price point and with shorter lead times, let this be the answer to your taping bottlenecks.

ROBOTAPE LITE CELL

Combine all of your assembly processes into one highly automated work cell. Specializing in custom integrations, we can take concept to reality while maintaining budget and minimizing size. Gain efficiency and achieve ROI fast.

CUSTOM WORK CELL

Discover the perfect taping machine solution for your business.
