In automated tape and adhesive application processes, consistent bonding performance depends on much more than adhesive selection alone. Variations in substrate condition can significantly impact adhesion, resulting in bond failures, rework, scrap, and long-term reliability concerns.
Materials such as EPDM rubber, engineered foams, and low-surface-energy plastics are commonly used in sealing and gasketing applications but often present bonding challenges that are not visible to the naked eye.
To help manufacturers improve process consistency, RoboTape systems can integrate surface preparation technologies such as atmospheric plasma treatment directly into the automated application process. This article explores why surface condition matters, where these challenges commonly occur, and the results of a validation study conducted under robotic operating conditions.
Why Surface Condition Matters in Automated Tape Applications
For pressure-sensitive tapes and adhesive-backed materials to perform reliably, they must fully wet the substrate surface and create consistent contact prior to bonding.
A key factor influencing this process is surface energy.
High-energy surfaces allow adhesives to spread evenly and establish strong contact. Low-energy surfaces cause adhesives to bead, reducing effective contact area and increasing the risk of bond failure.
Materials commonly found in automated sealing applications-including EPDM, polypropylene, polyethylene, and engineered foams-naturally exhibit low surface energy characteristics that can make consistent bonding difficult.
While adhesive selection remains important, substrate preparation is often equally critical to achieving repeatable results on the production floor.
How Surface Preparation Improves Bonding Consistency
Depending on the application requirements, RoboTape systems can incorporate surface preparation technologies before tape application occurs.
Atmospheric plasma treatment is one of the most widely used methods for improving substrate conditions prior to bonding.
The process contributes in three key areas:
| Surface Preparation Effect | Benefit to the Application Process |
|---|---|
| Cleaning | Removes oils, contamination, and residues that interfere with adhesion. |
| Surface Conditioning | Improves consistency across the substrate surface. |
| Surface Activation | Increases the surface’s ability to interact with adhesives. |
By creating more consistent bonding conditions ahead of tape application, manufacturers can reduce process variation and improve long-term adhesion performance.
Applications Where Surface Preparation Delivers Value
Automotive
- EPDM weather seals
- NVH materials
- Foam gasketing
- Trim attachment
- Sealing applications
Challenging substrates often require controlled surface preparation to help maintain reliable adhesion throughout the product lifecycle. A 2024 study on metal-polymer hybrid structures ties this directly to the industry’s push for lightweight, durable joints. The trial referenced in this article was conducted for a real-world application in this industry.
Appliance Manufacturing
Manufacturers frequently use adhesive-backed foam materials and sealing products that benefit from improved substrate consistency before application.
Building Products
Weather seals, insulation materials, and architectural assemblies often rely on long-term adhesive performance in demanding environments.
Electronics
Protective gasketing, shielding materials, and sealing applications require consistent adhesion to withstand vibration, temperature fluctuations, and extended operating life.
Across these industries, the challenge remains the same: maintaining reliable adhesion while achieving high production throughput.
Why Integration Matters
The effectiveness of any surface preparation process depends heavily on consistency.
Variables such as treatment distance, speed, coverage, and timing between treatment and application can all influence bonding performance.
When performed manually, these variables can fluctuate significantly from part to part.
- Maintain repeatable process parameters
- Eliminate operator variation
- Ensure consistent tape placement
- Improve bonding reliability
- Support scalable production
Automation allows every component to receive the same treatment, using the same parameters, every cycle.
Validation Study: Measuring the Impact on Adhesion Performance
To better understand how surface preparation impacts automated adhesive applications, a validation study was conducted using Nitto 686 EPDM foam strips under controlled robotic operating conditions.
Untreated samples were used as controls, while treated samples received atmospheric plasma surface preparation prior to adhesive application.
Testing was performed across three production speeds:
- 80 mm/s
- 90 mm/s
- 100 mm/s
Pull-force measurements were collected at multiple locations along each strip to evaluate bonding consistency throughout the process.
Results
17Bond failures observed in untreated samples | 0Bond failures observed in plasma-treated samples | 100 mm/sHighest tested operating speed with no measurable reduction in bonded performance |
Across all tested operating speeds, every recorded bond failure occurred in untreated samples.
Plasma-treated samples maintained consistent adhesion performance throughout the entire operating range, demonstrating significantly improved process reliability under identical production conditions.
Process Stability Across Production Speeds

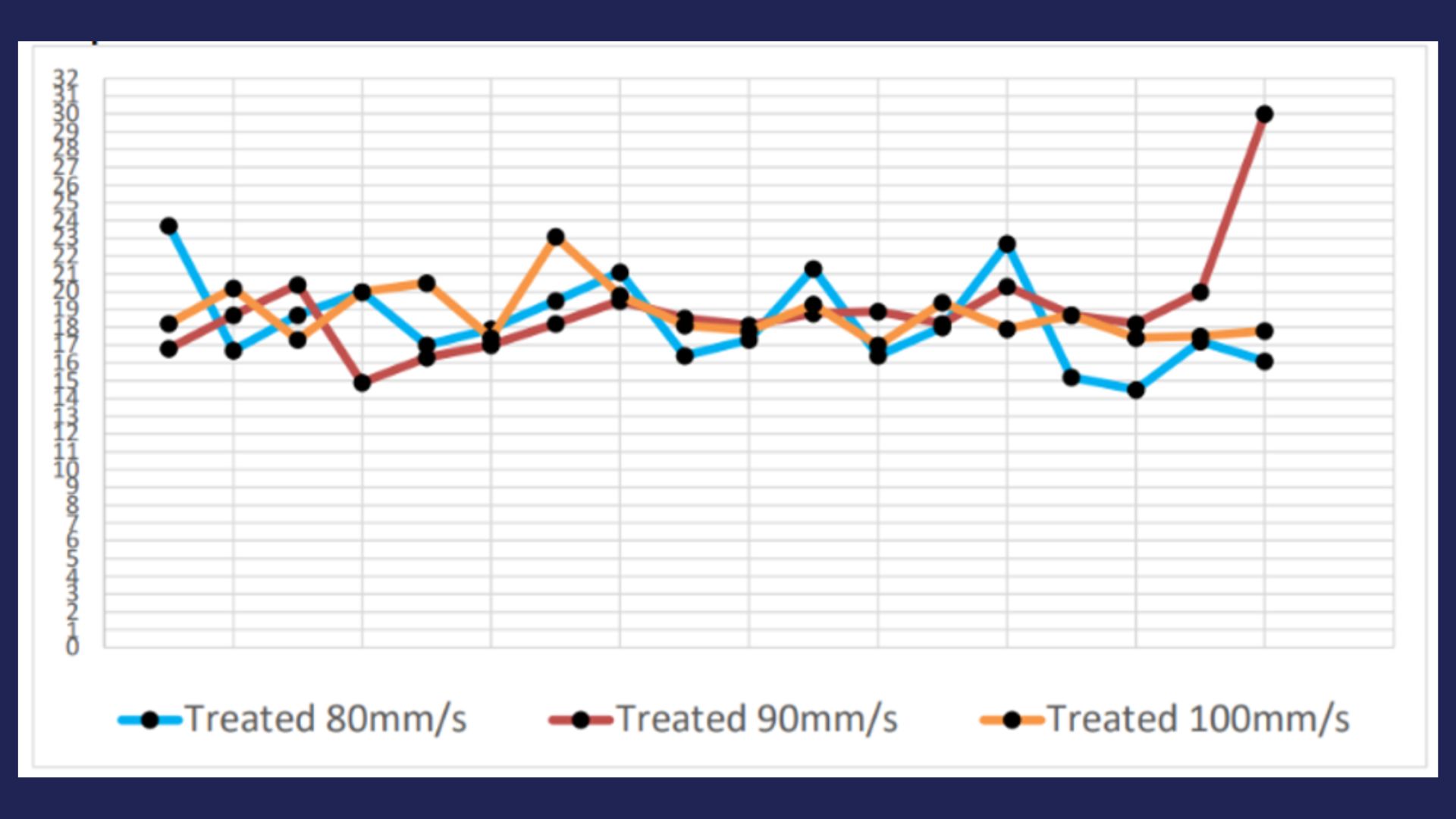

Pull-force measurements across plasma-treated samples provided additional confirmation that process stability was maintained throughout the full tested operating range.
The measured data demonstrated consistently strong pull-force values with relatively narrow variation between individual test points. Most measurements remained above 15 N, with multiple readings exceeding 20 N, indicating stable bond formation throughout the full tested operating range.

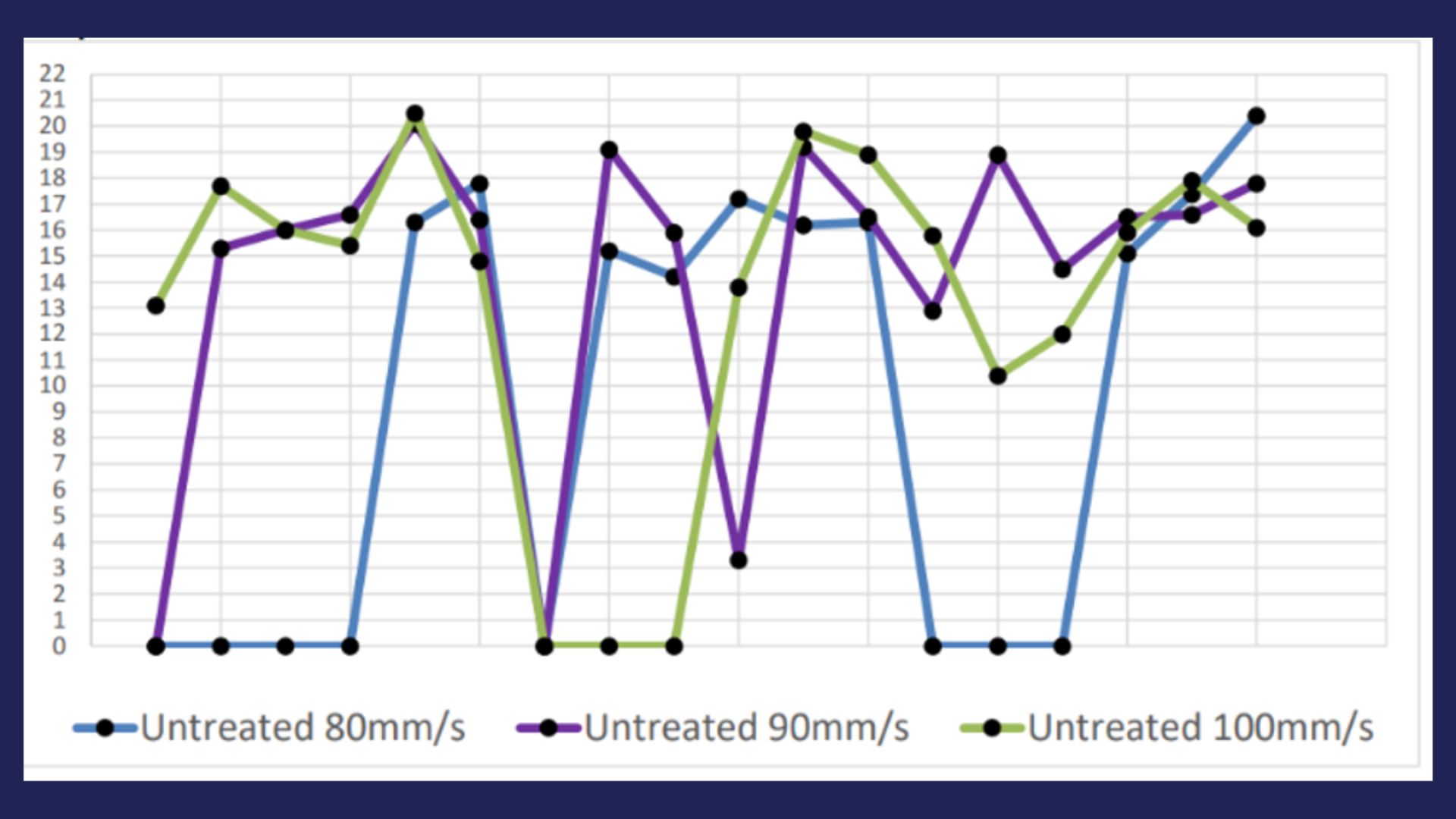

By contrast, untreated samples exhibited substantially greater variation and multiple complete adhesion failures.
Several pull-force measurements recorded zero-value results, indicating total bond failure under otherwise identical process conditions.
The results suggest that surface preparation can significantly reduce process variability when working with difficult-to-bond materials such as EPDM.
What This Means for Automated Tape Application
For manufacturers using automated tape application systems, bond reliability is directly linked to production efficiency, product quality, and long-term field performance.
This study demonstrated that substrate preparation can be a critical factor when processing challenging materials.
When integrated into an automated tape application process, surface preparation technologies can help manufacturers:
- Reduce bond failures
- Improve process repeatability
- Increase confidence at higher operating speeds
- Improve overall product quality
- Reduce rework and scrap
Rather than treating adhesion issues after production begins, manufacturers can address potential variability at the source by creating more consistent bonding conditions before tape application occurs.
